Last Updated
18 March, 2005


3SGTE
Engine Harness
Connectors

When I rebuilt my motor, I decided to catalog the connectors on the engine harness as I disassembled it into the minimal pieces necessary to work with the TEC≥. I also tried to get the wires into the shots, showing their colors. I figured it might be of use to me later, and it might be of use to others.

There are 36 connectors, and I retained only about 8 of the OEM pieces.

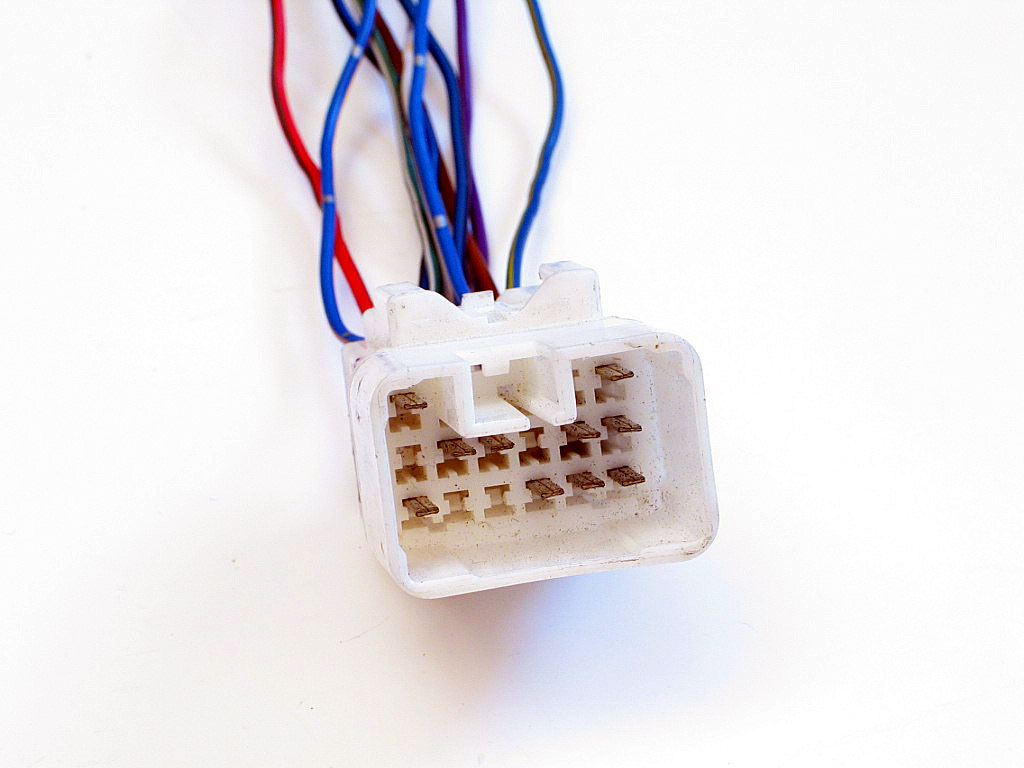

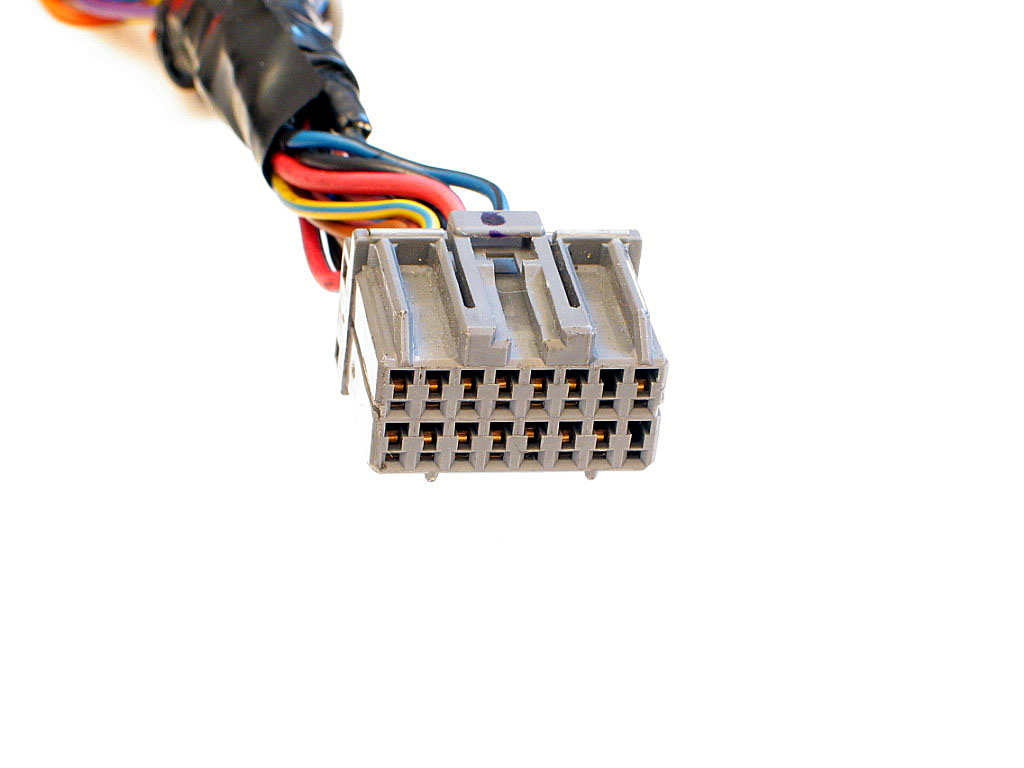

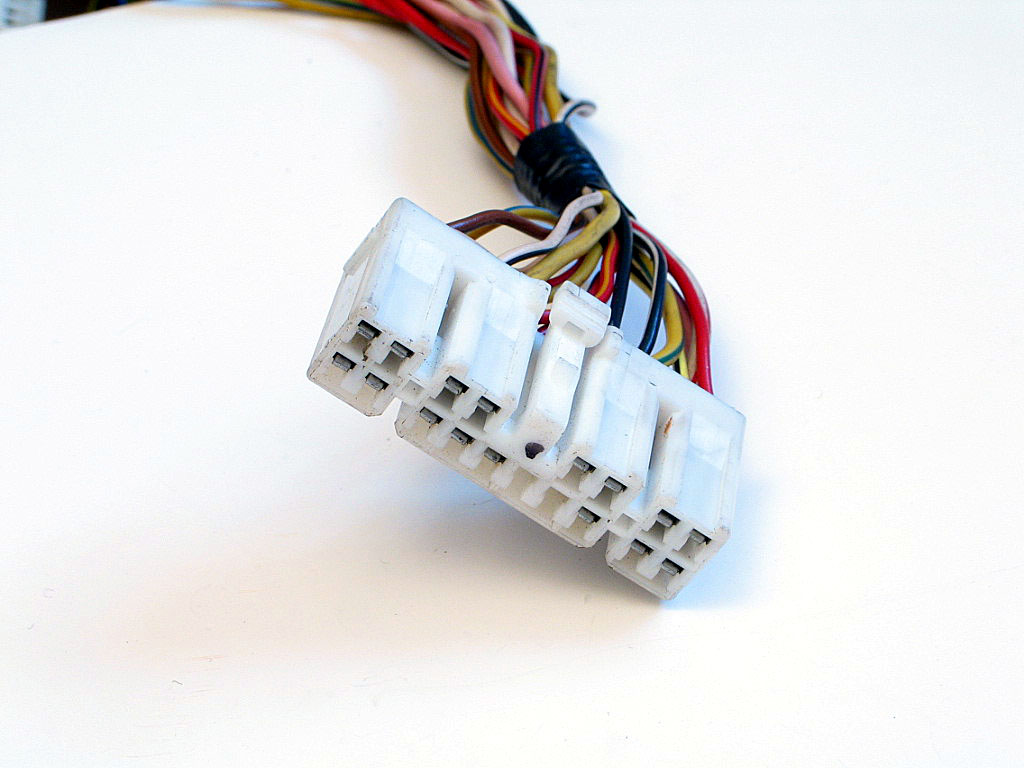

15-Pin Harness Connector 16-Pin ECU Connector 18-Pin Fuse Box Connector

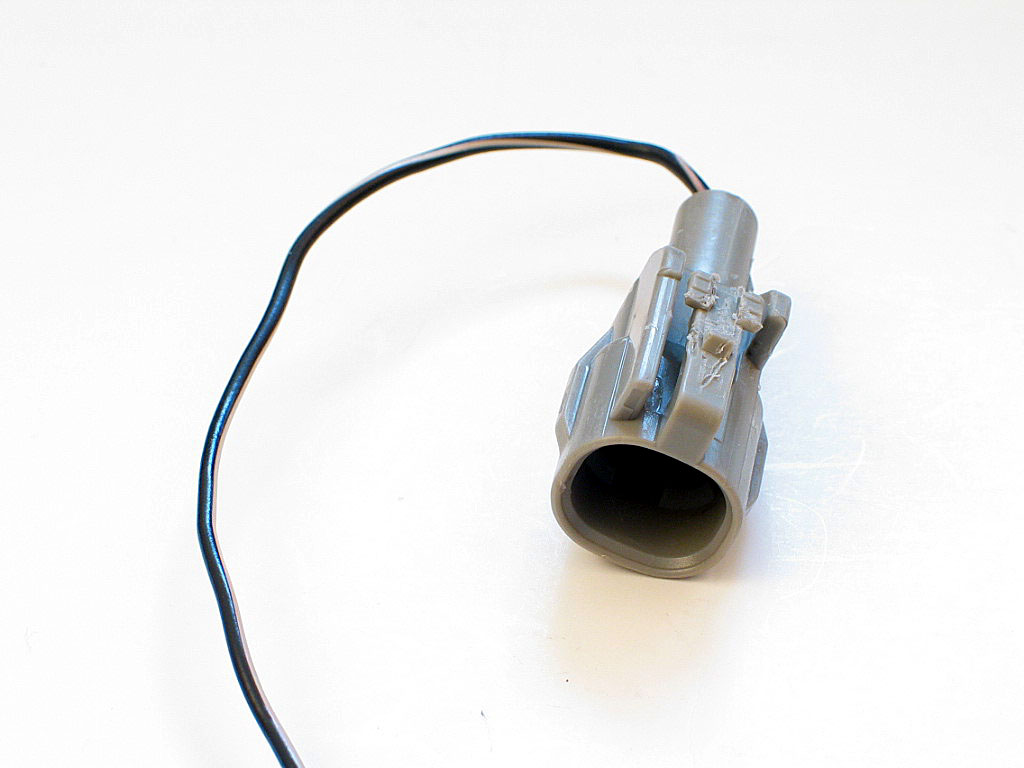

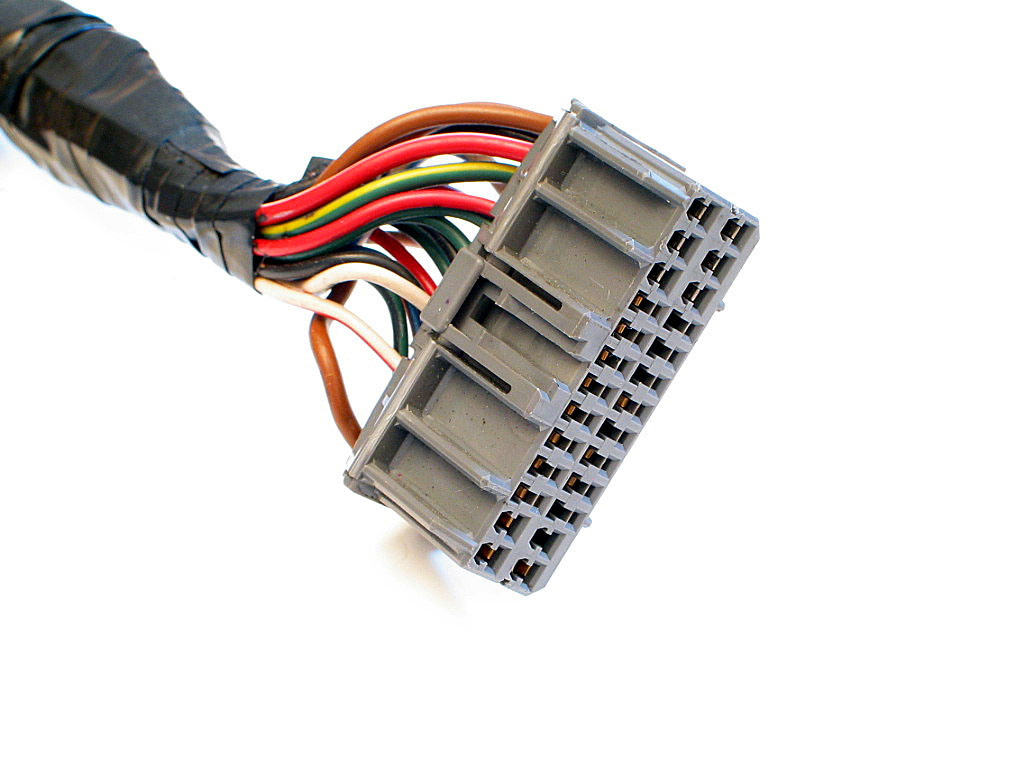

  26-Pin ECU Connector 8-Pin Fuse Box Connector AC Clutch Connector

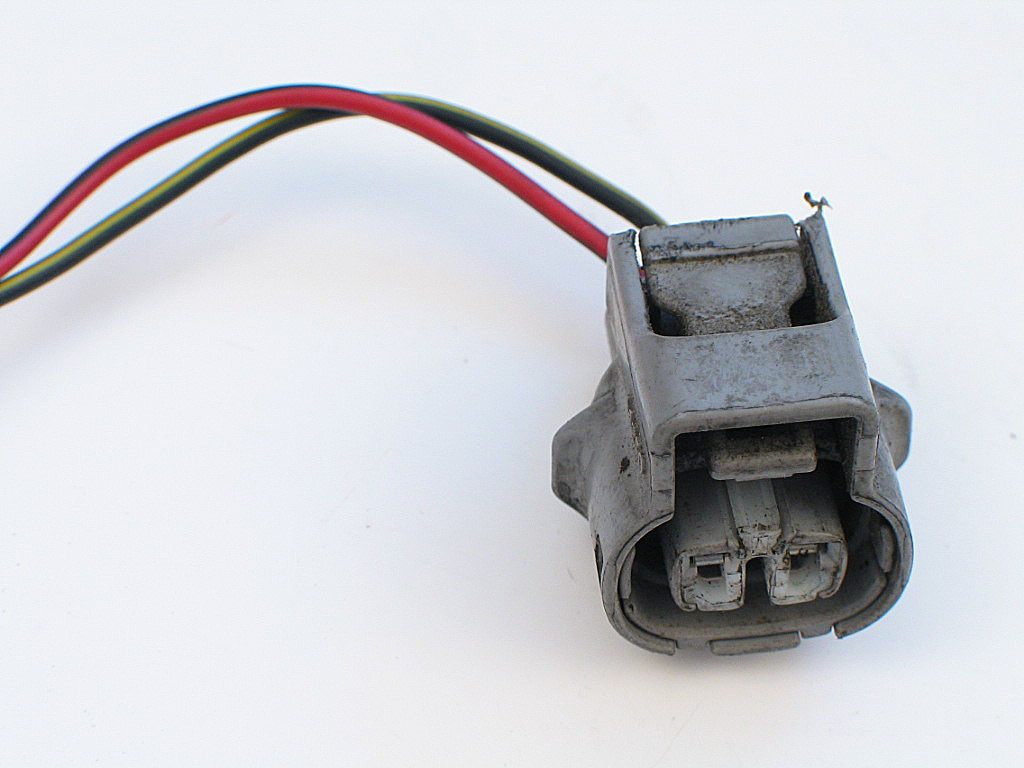

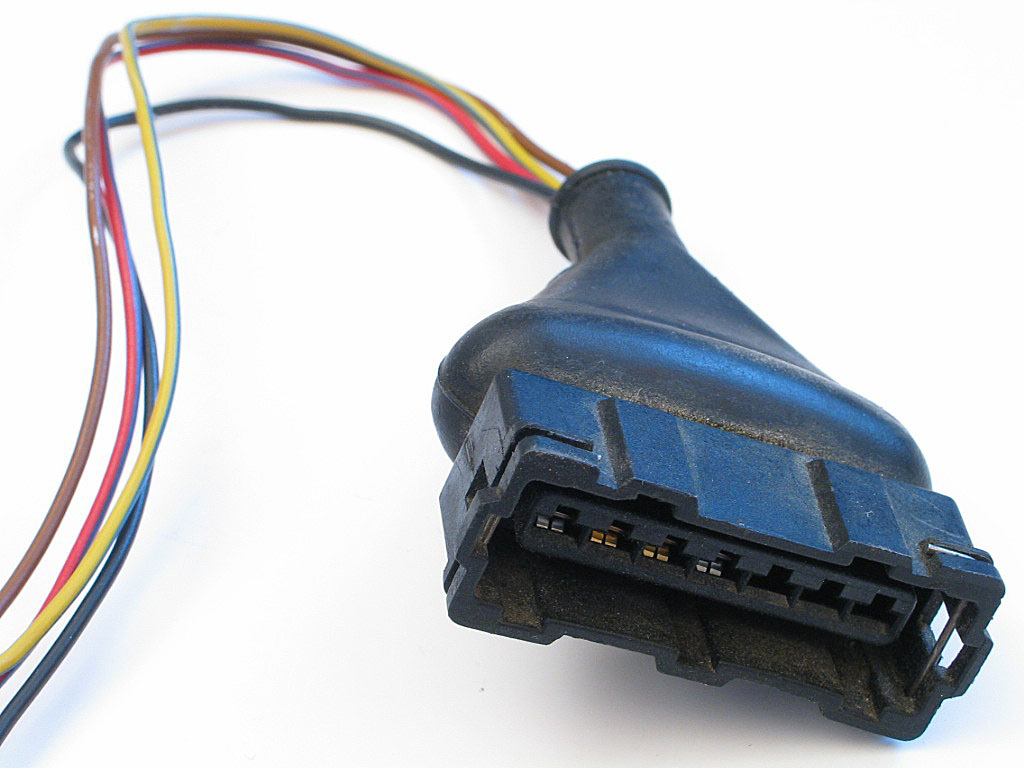

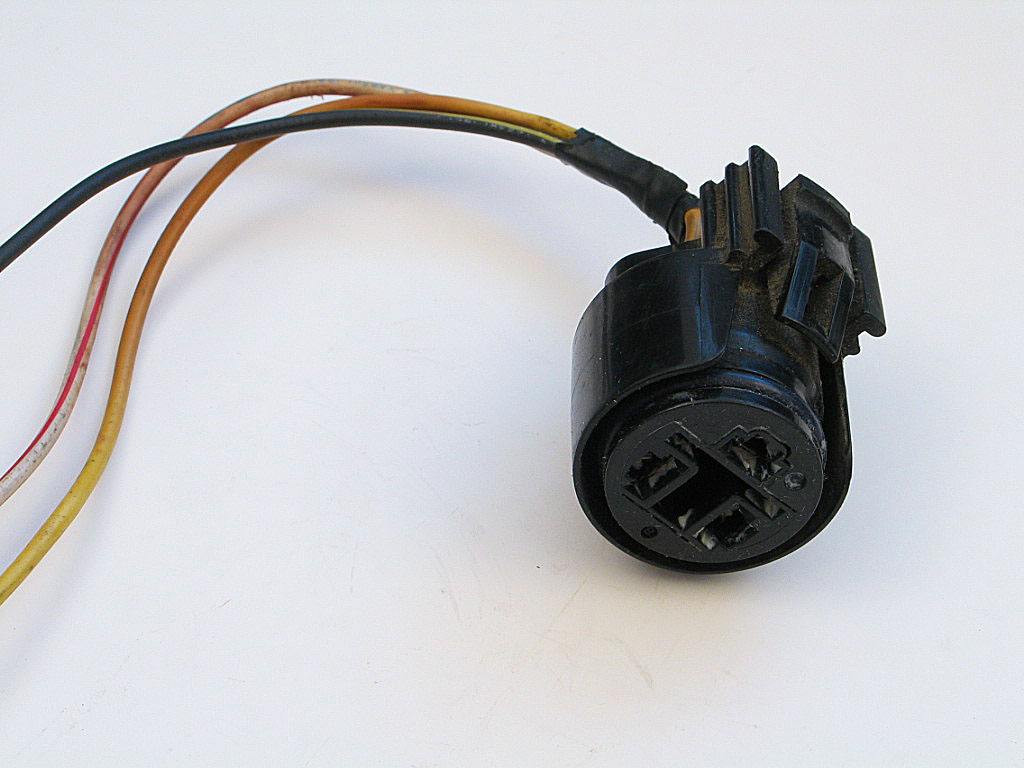

  AFM Connector Alternator Connector Backup Light Switch Connector

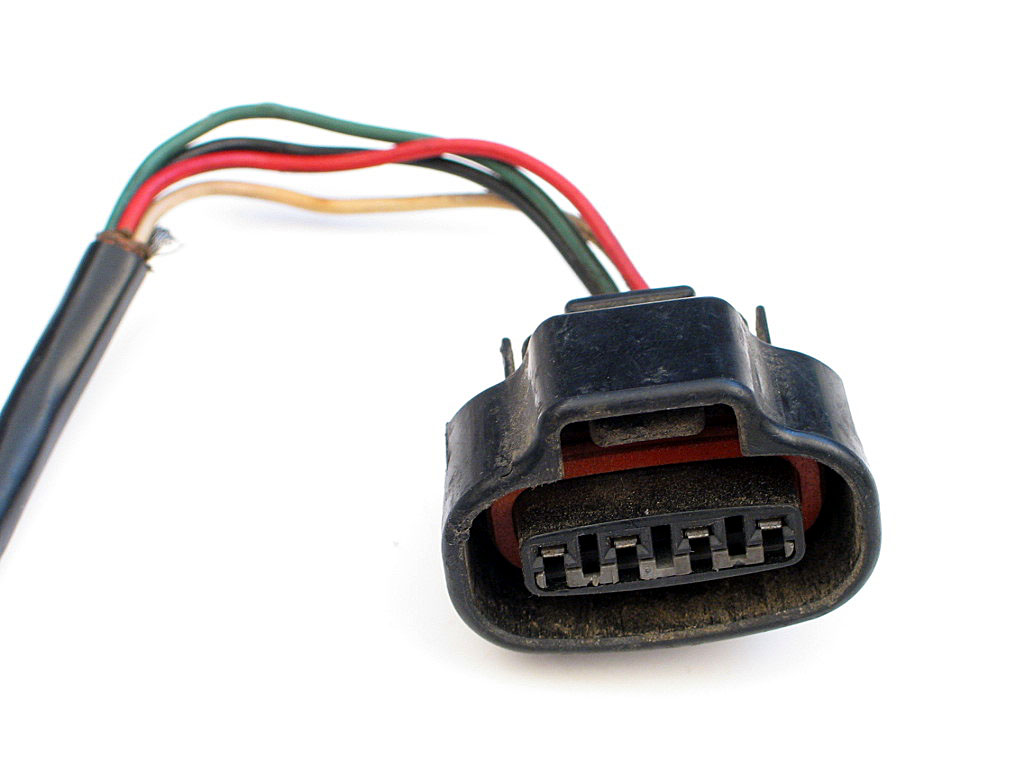

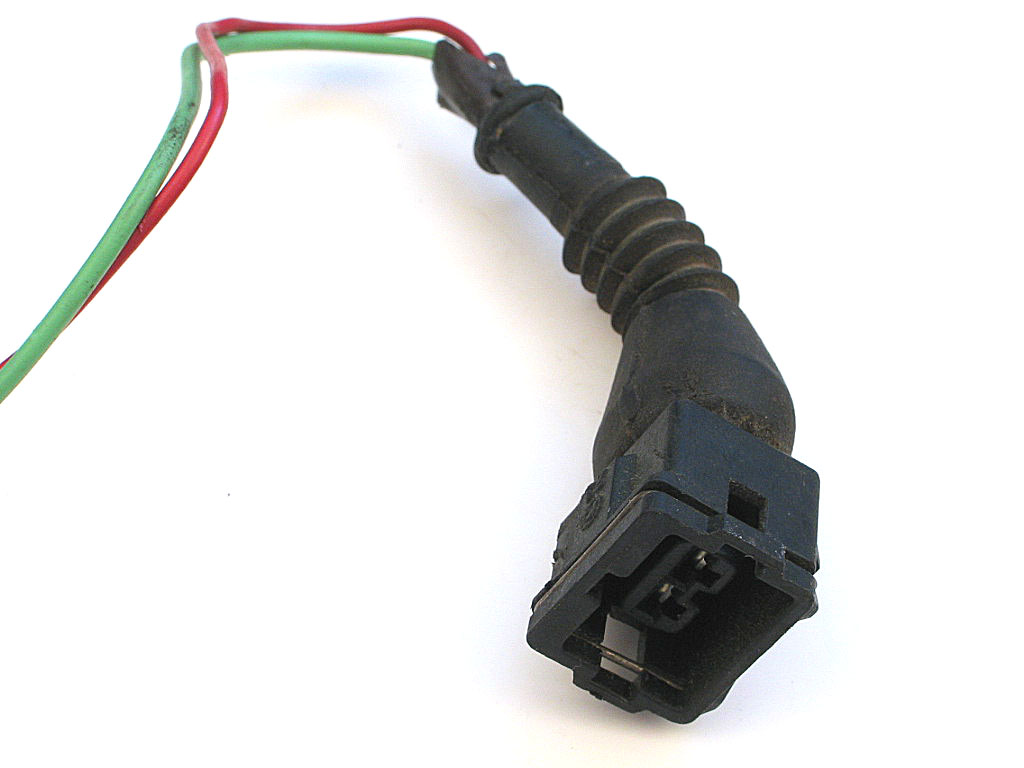

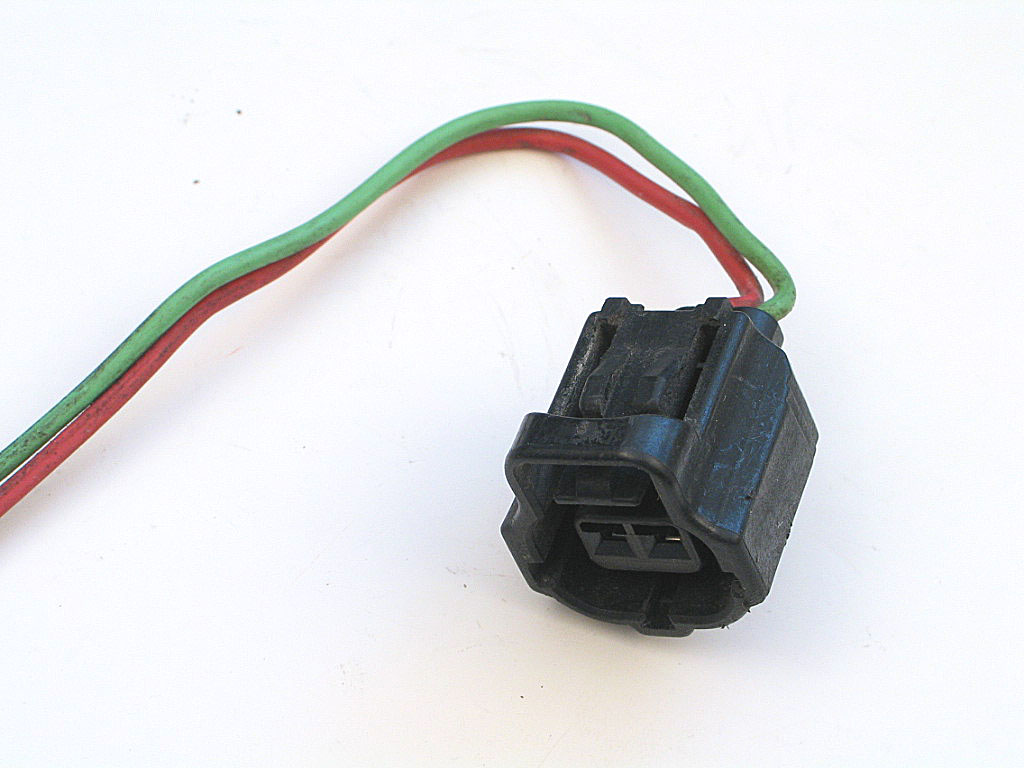

  Cold Start Injector Connector Cold Start Time Switch Connector Distributor Connector

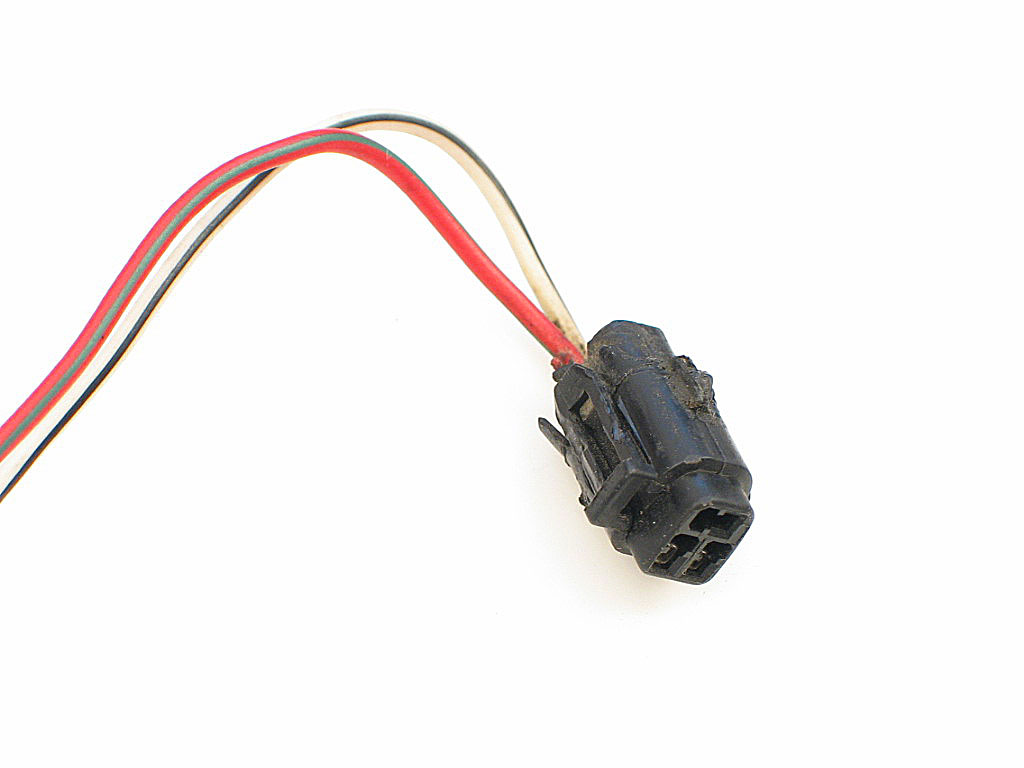

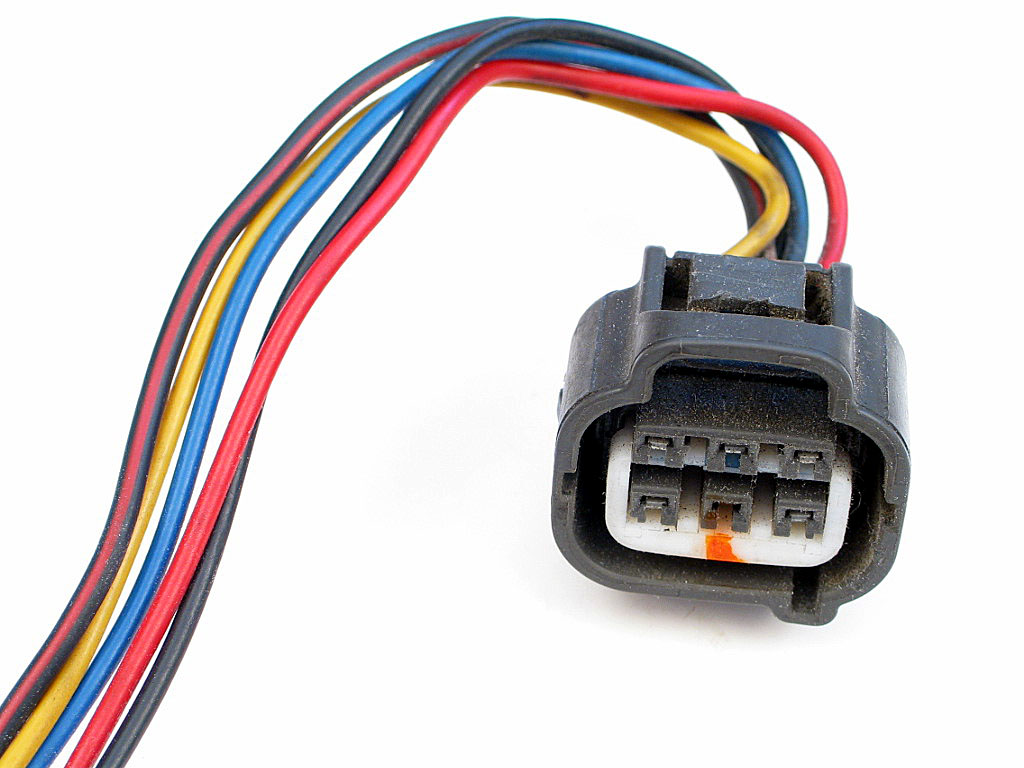

  EFI Resistor Connector EGR Sensor Connector Engine Hood Switch Connector

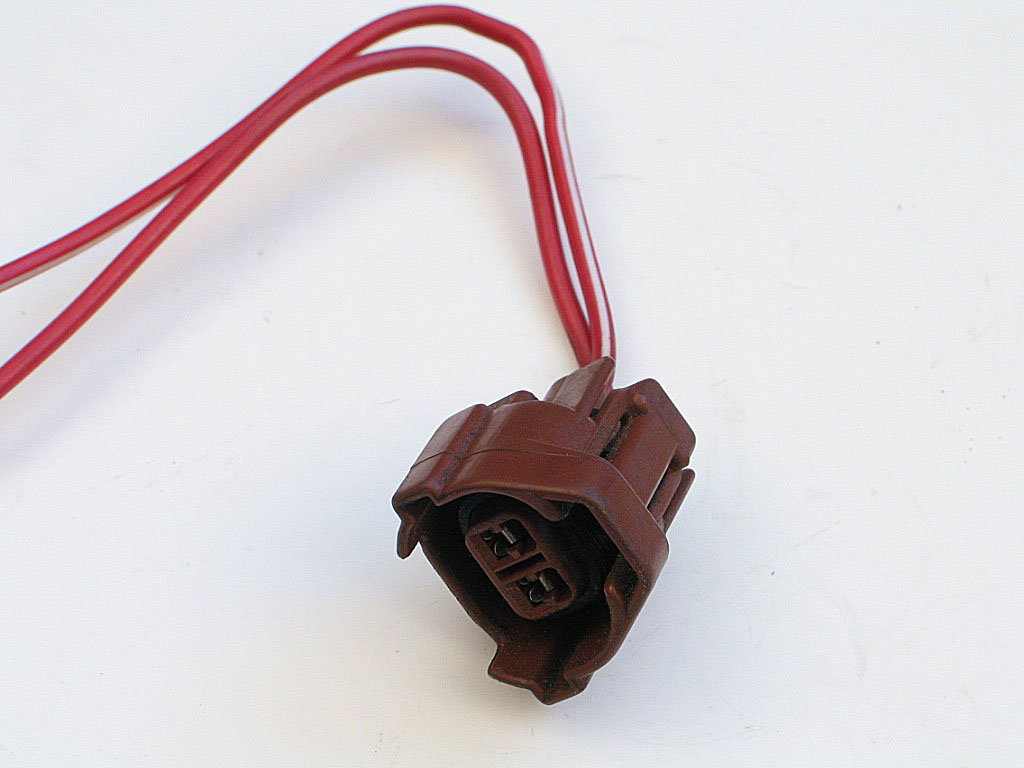

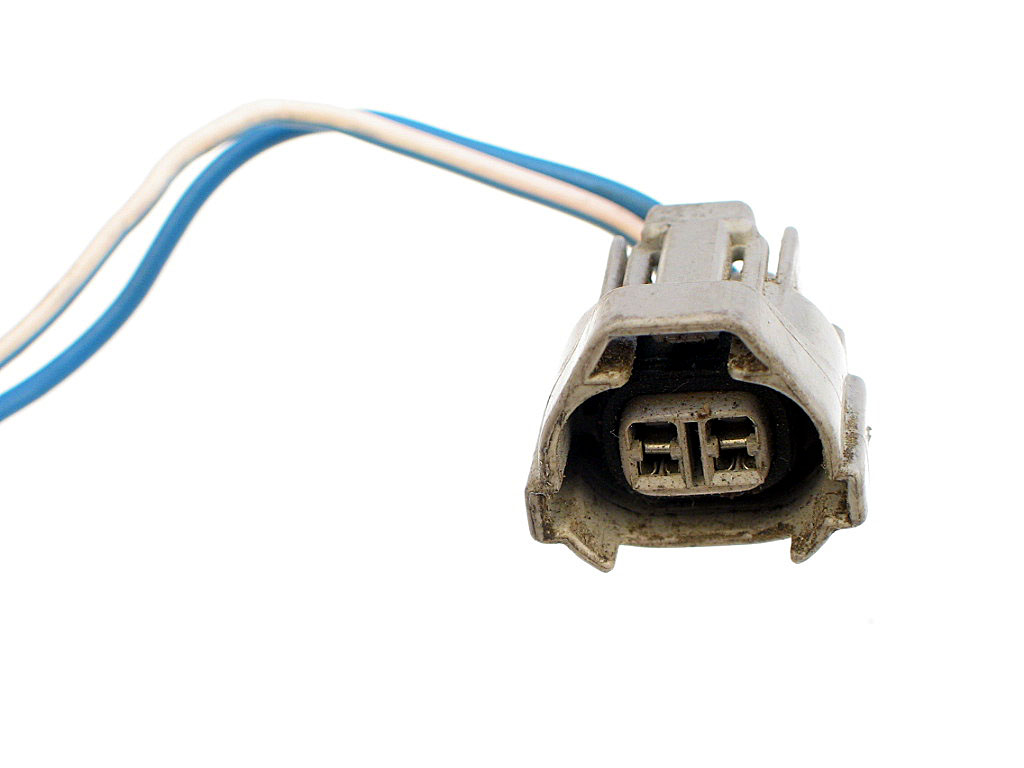

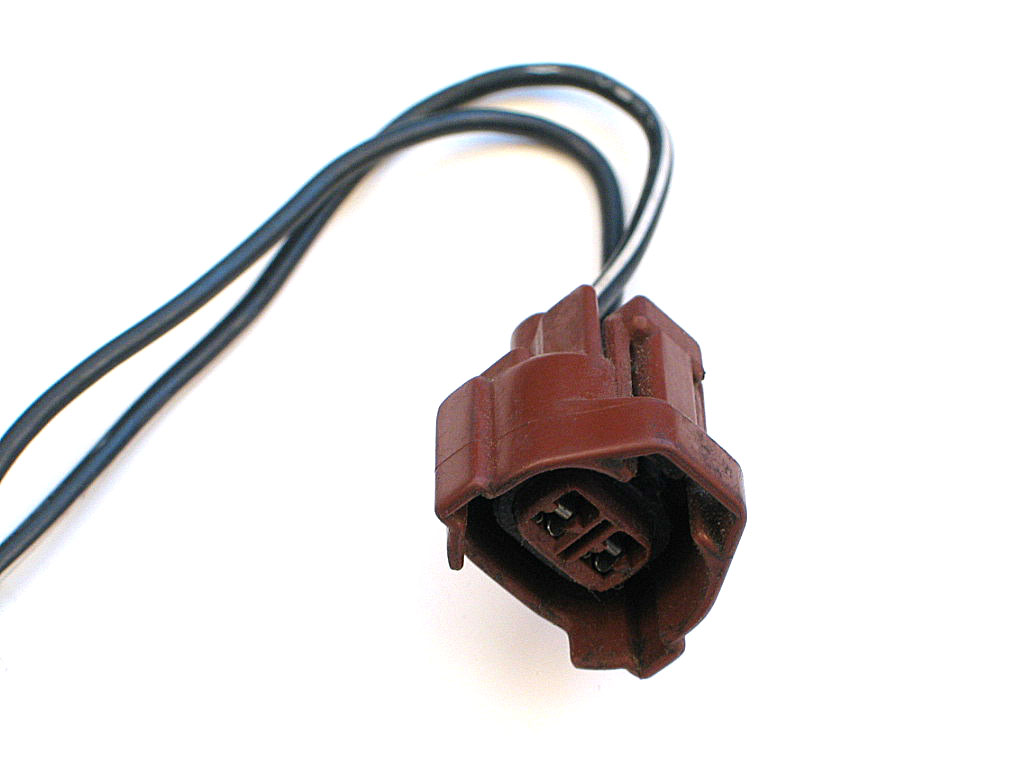

  Fuel Injector No. 1 Connector Fuel Injector No. 2 Connector Fuel Injector No. 3 Connector

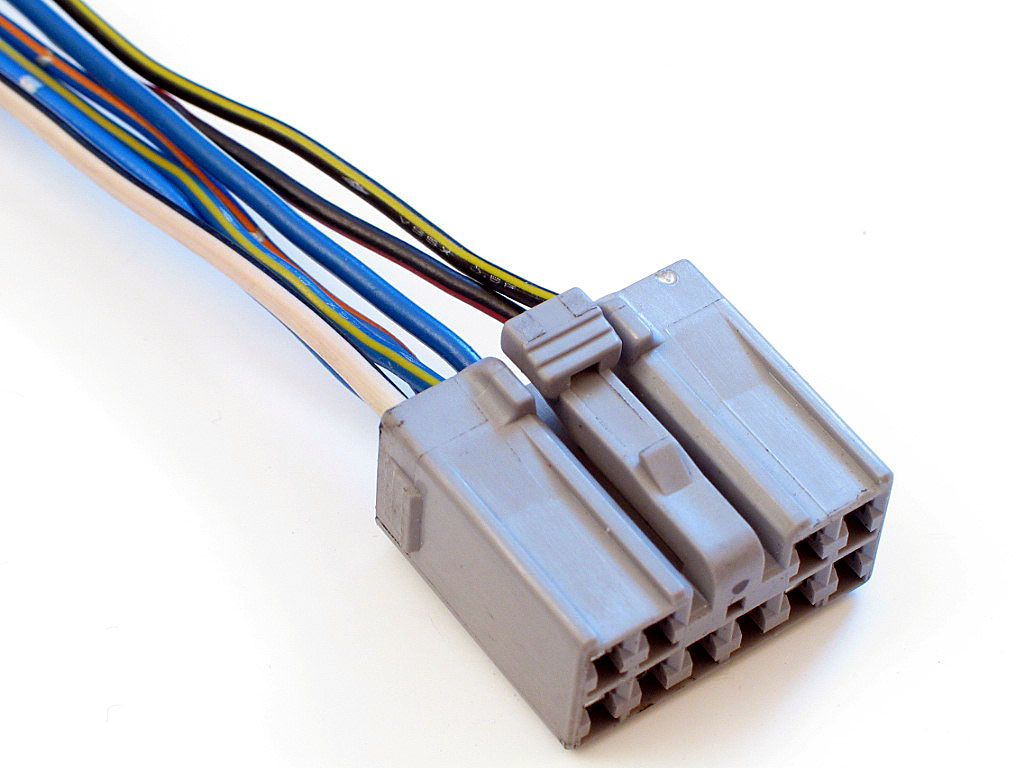

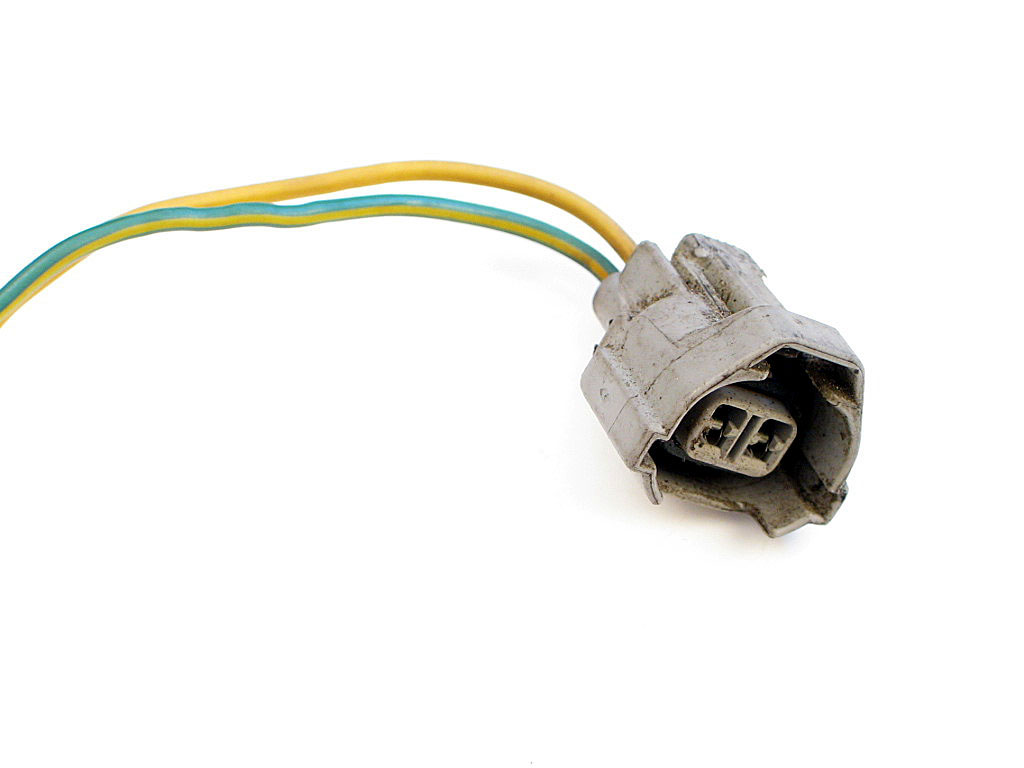

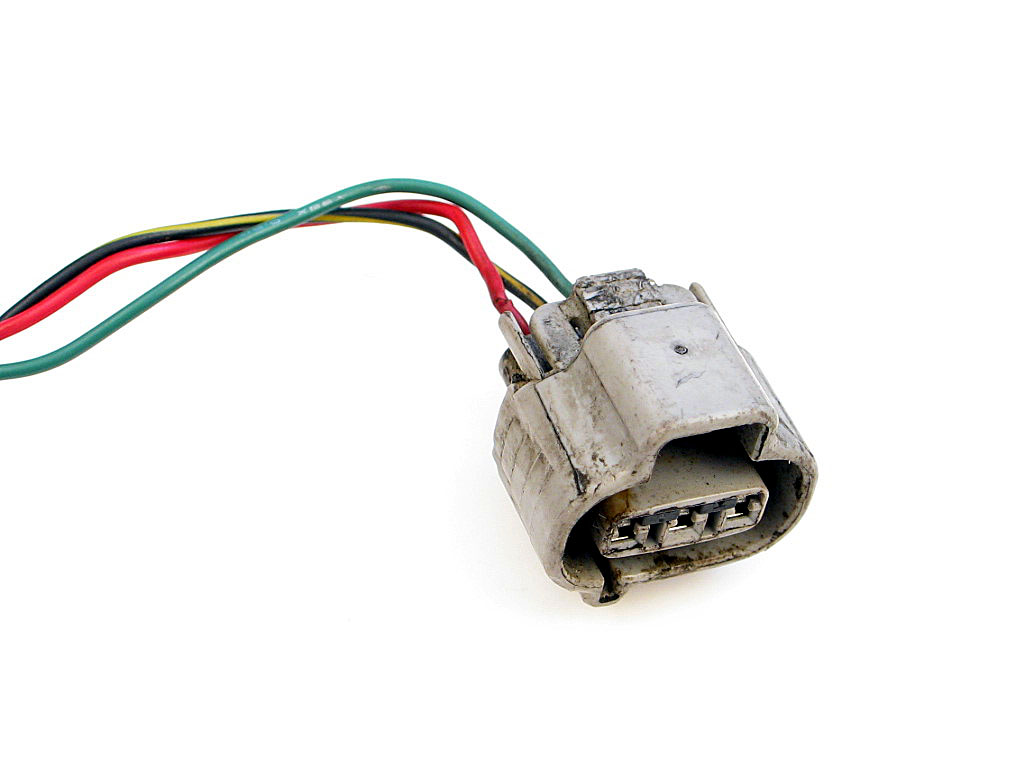

  Fuel Injector No. 4 Connector IACV Connector Intercooler Fan ECU Connector

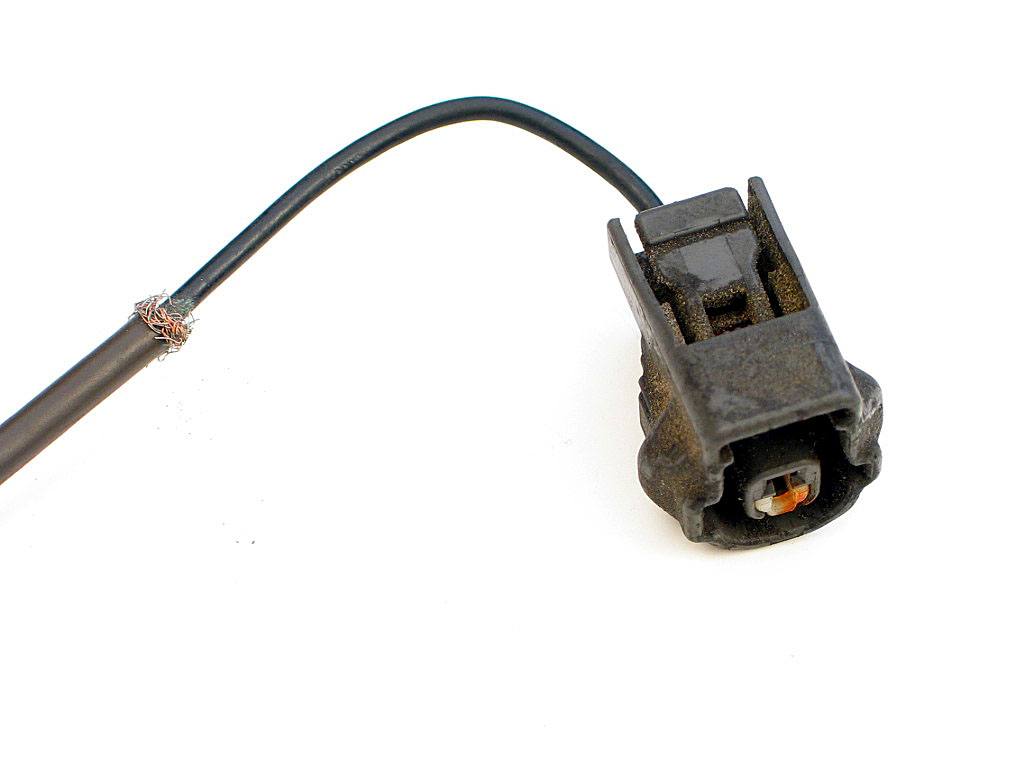

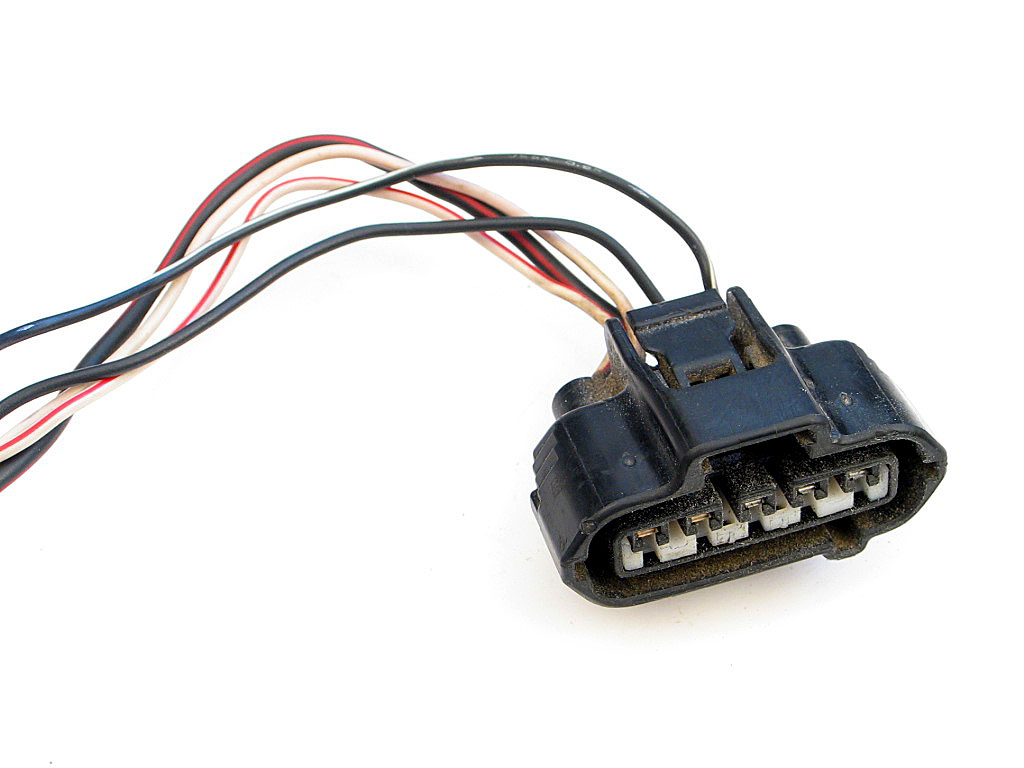

  Igniter Connector Knock Sensor Connector MAP Sensor Connector

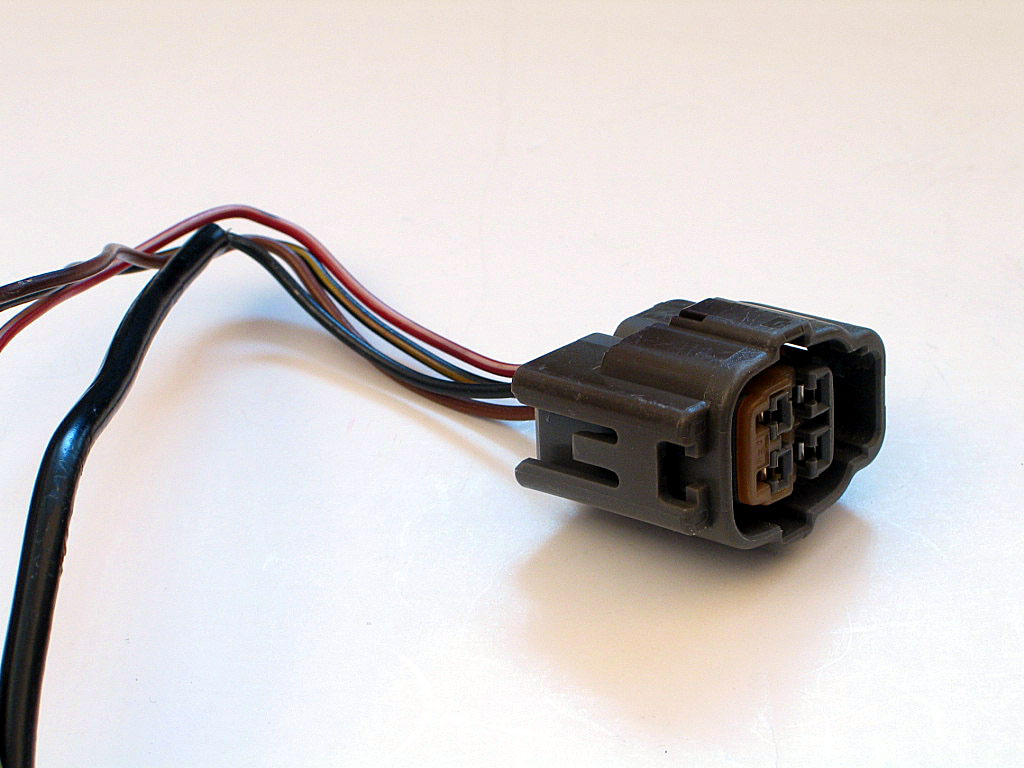

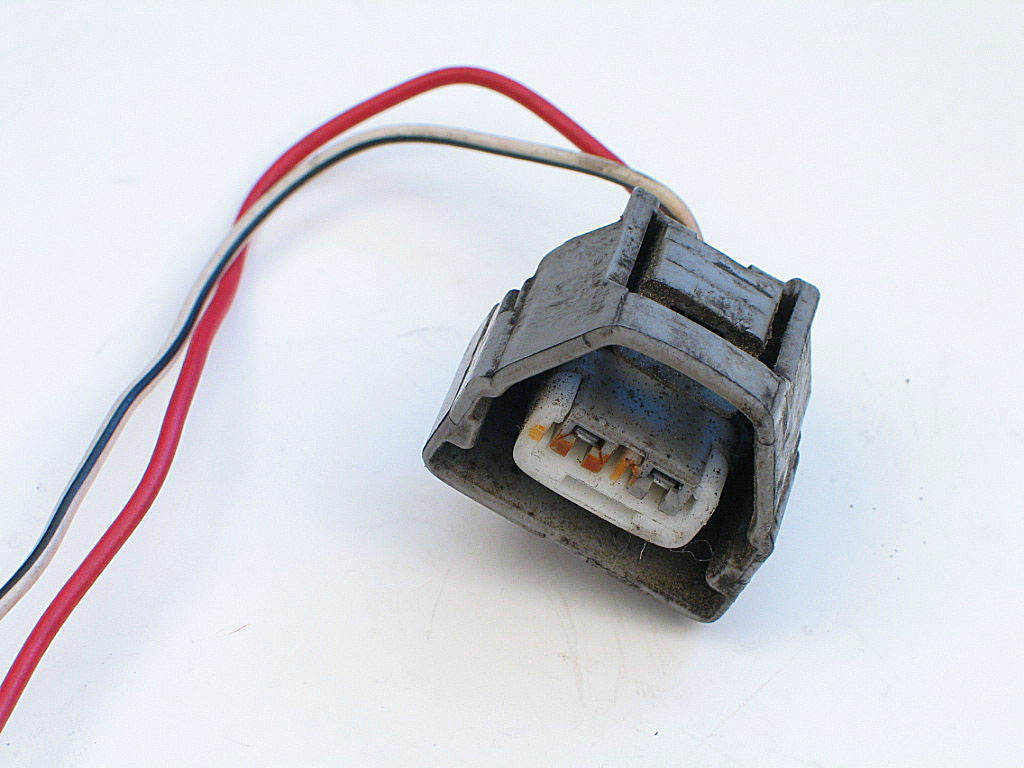

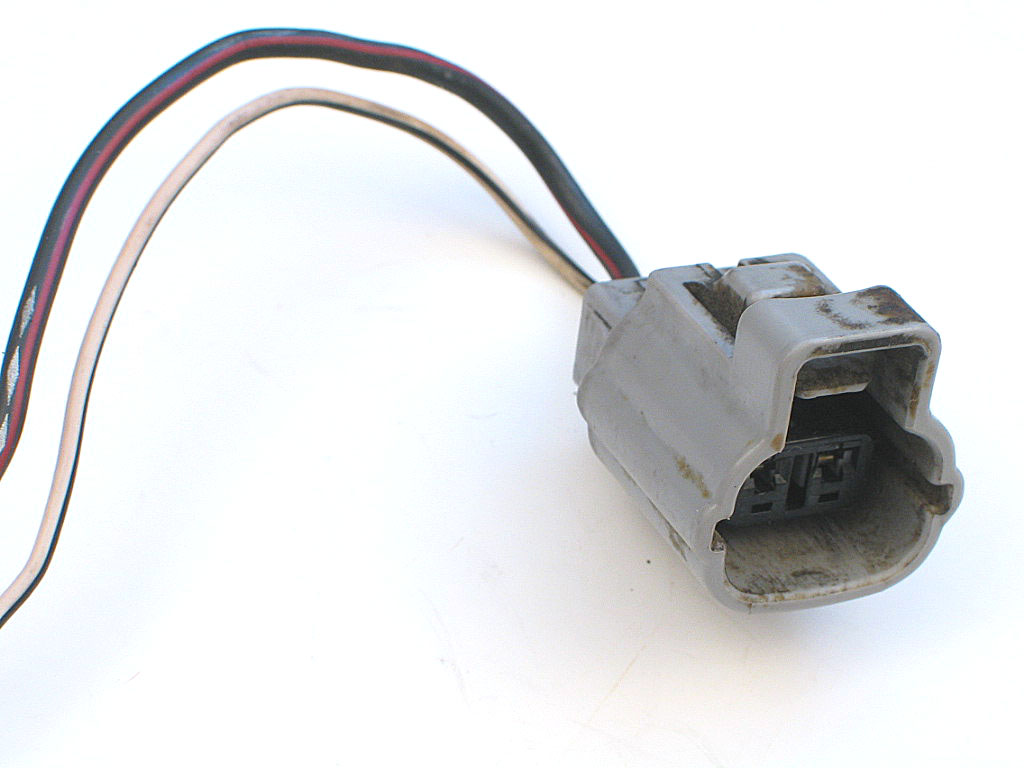

  Noise Filter Connector O2 Sensor Connector Oil Level Sensor Connector

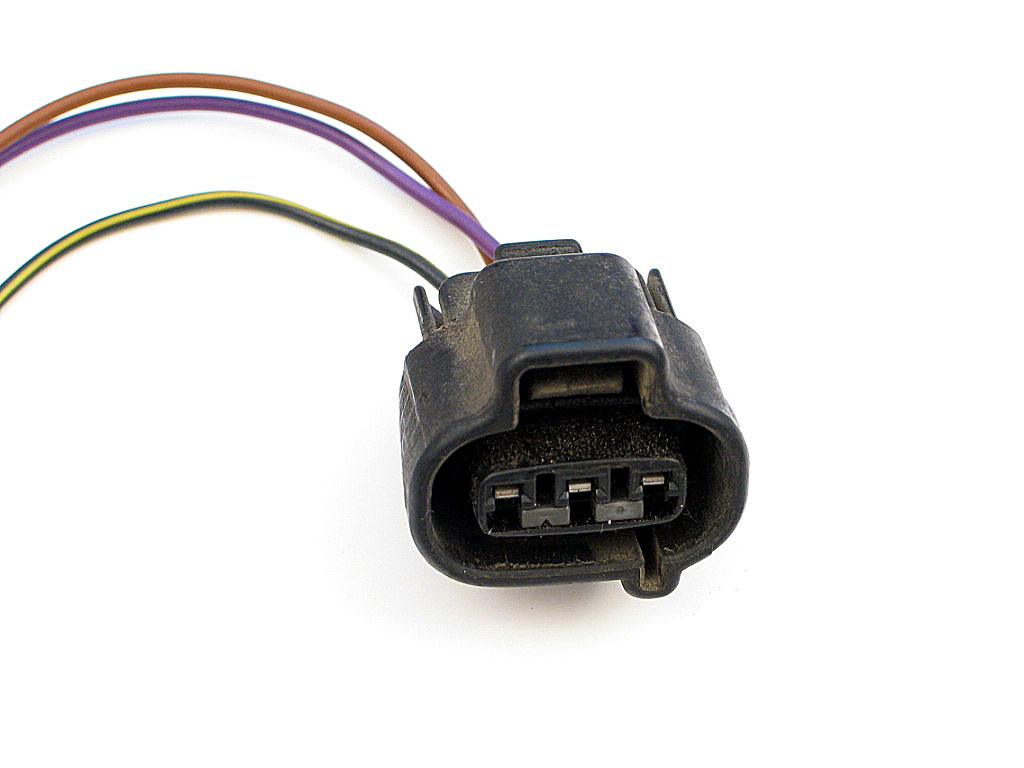

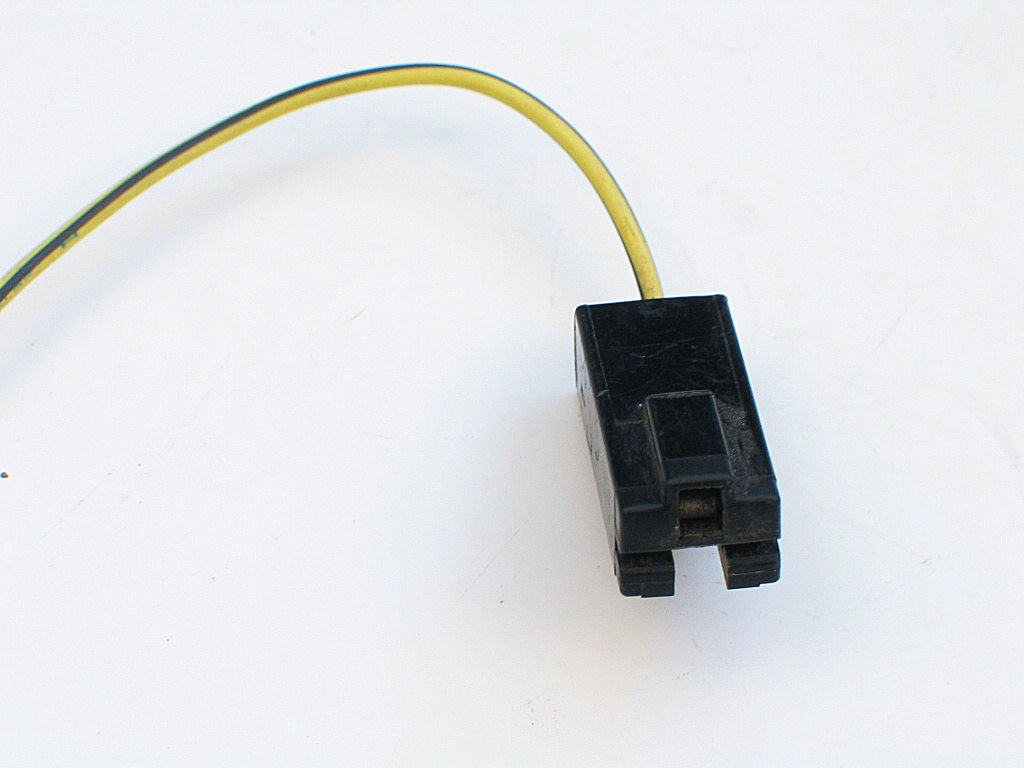

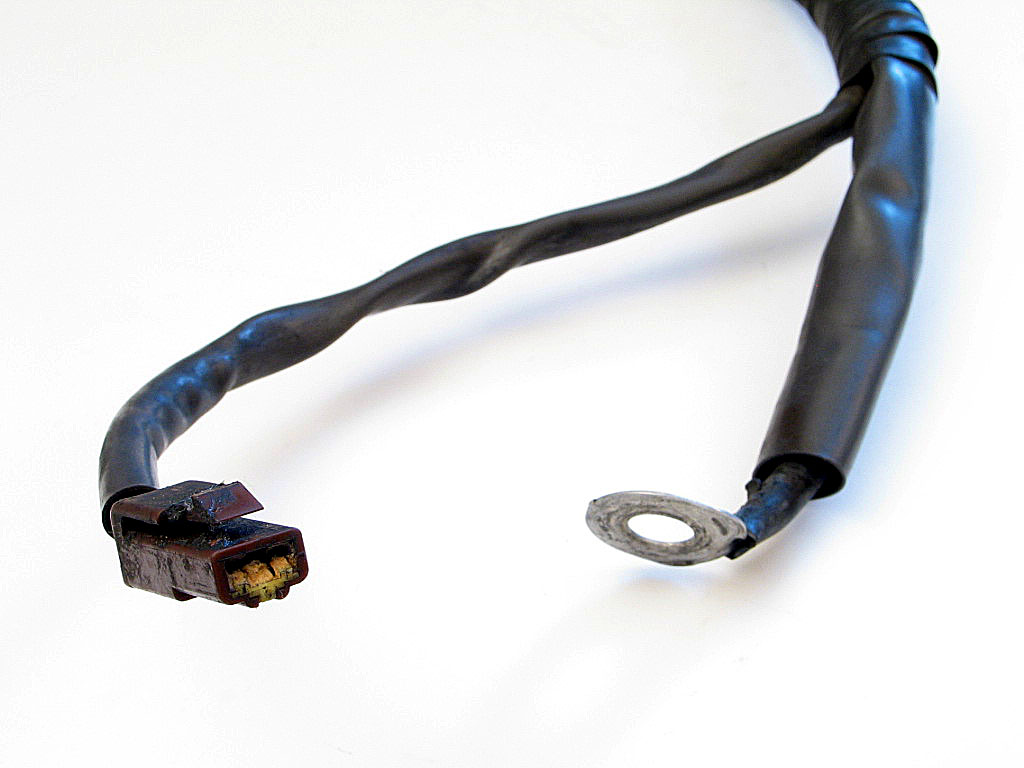

  Oil Pressure Switch Connector Speed Sensor Connector Starter Connectors

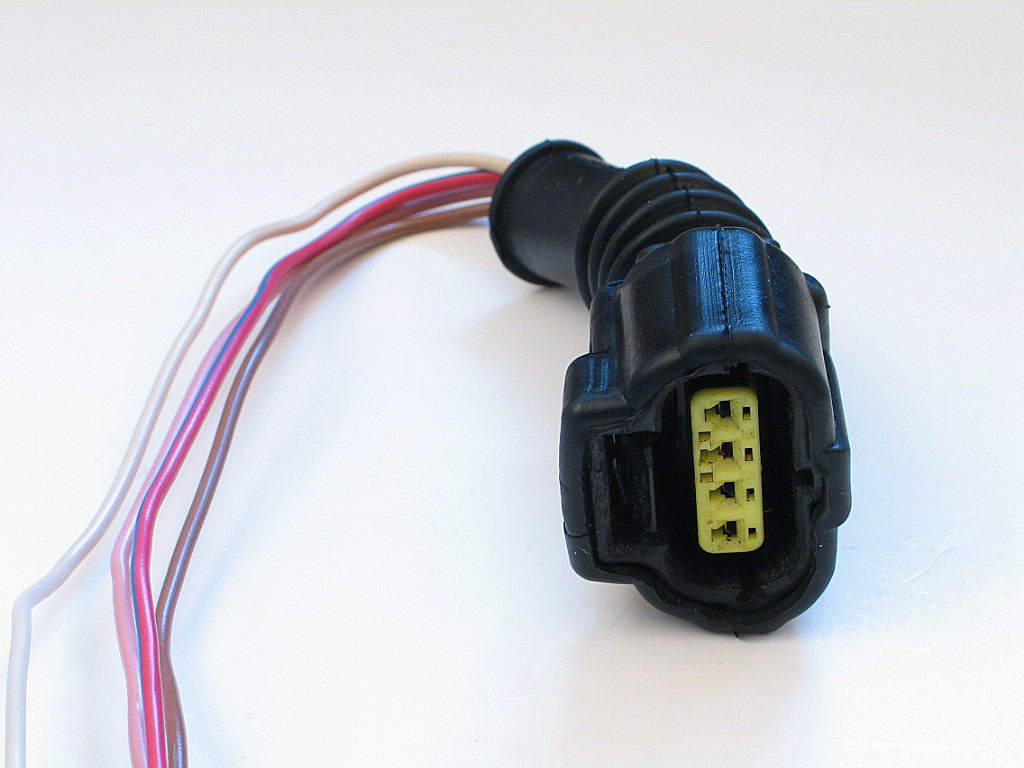

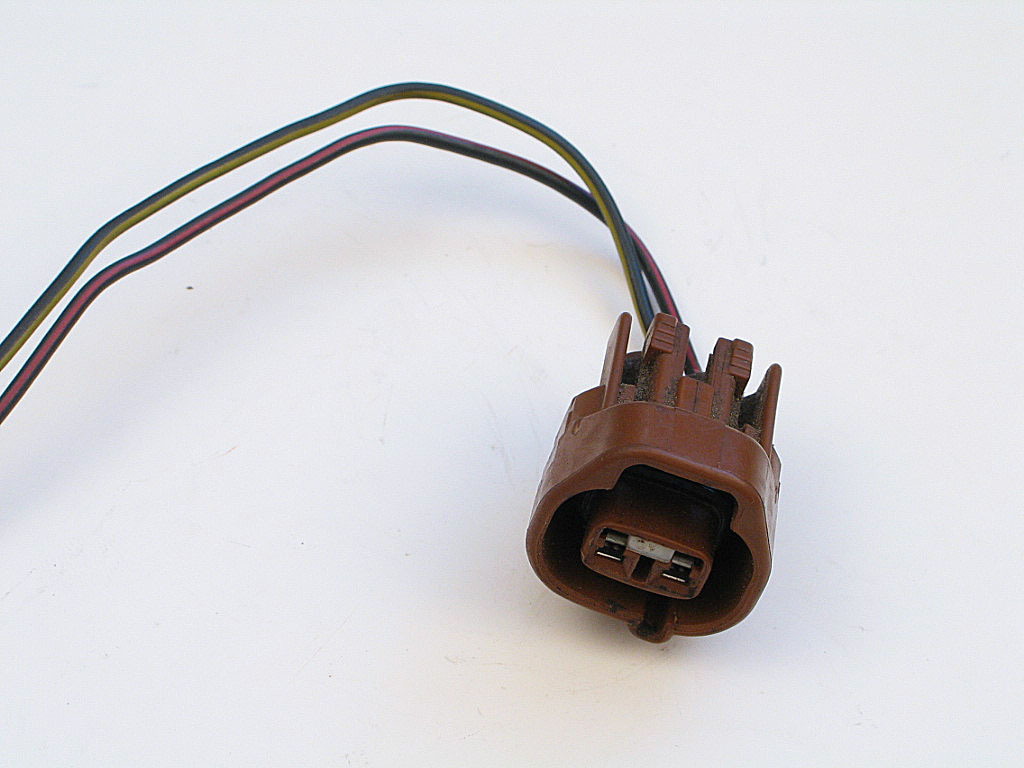

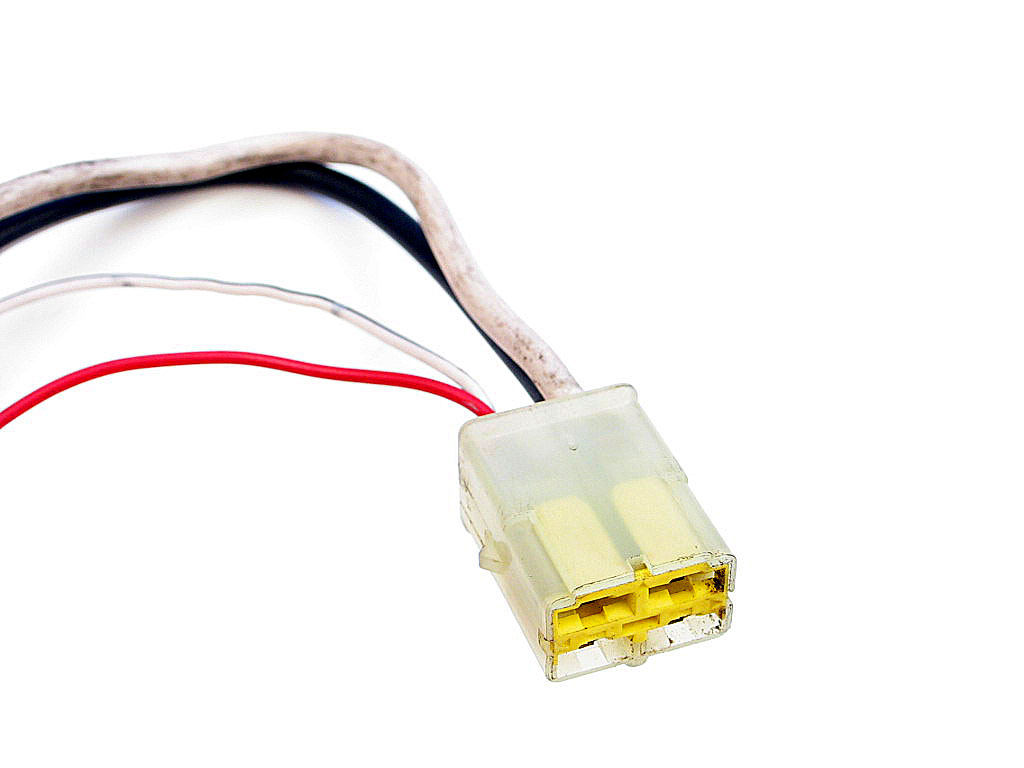

  Starter Relay Connector TPS Connector VSV for EGR Connector

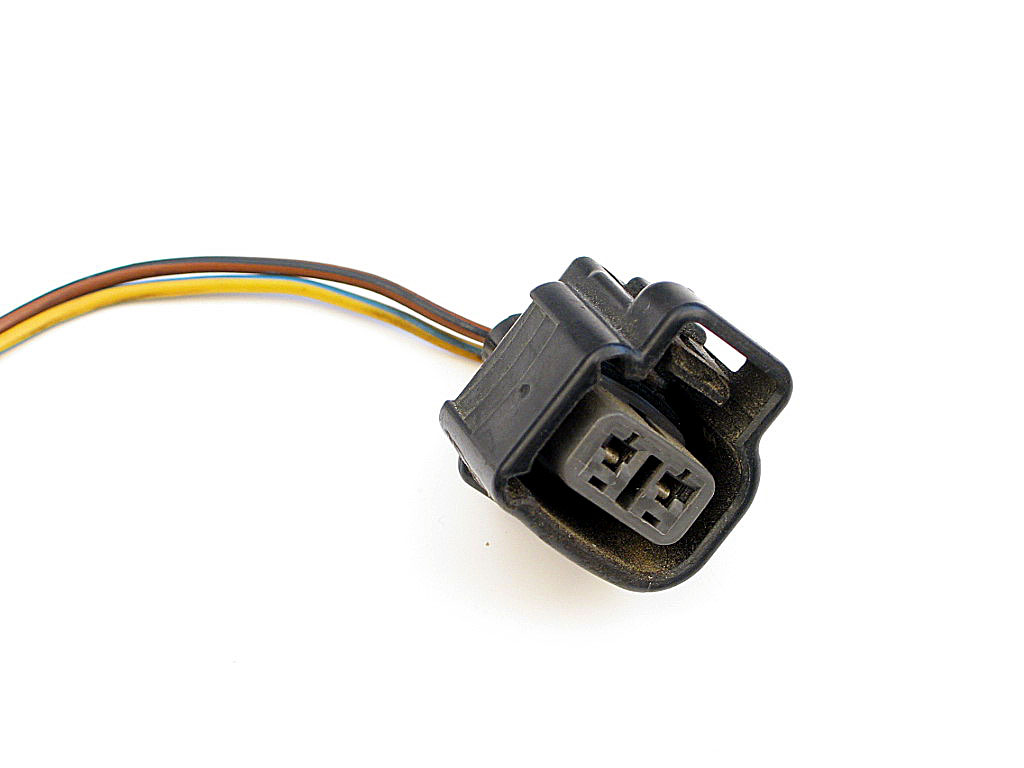

  VSV For Idle-Up Valve Connector Turbo VSV Connector Water Temp Sensor Connector
